DTC’s confirmation:-
After rectification, ensure the following points before handing over the system to the customer.
a) Speedometer shall do the welcome strategy 4sec at ignition key ON.
b) By removing the VSS sensor connector IC shall display at ‘0’ position only.
c) Check and ensure VSS Sensor input & follows the same value in the gauge pointer.
d) Check also in vehicle driving condition & check the speedometer pointer change in display.

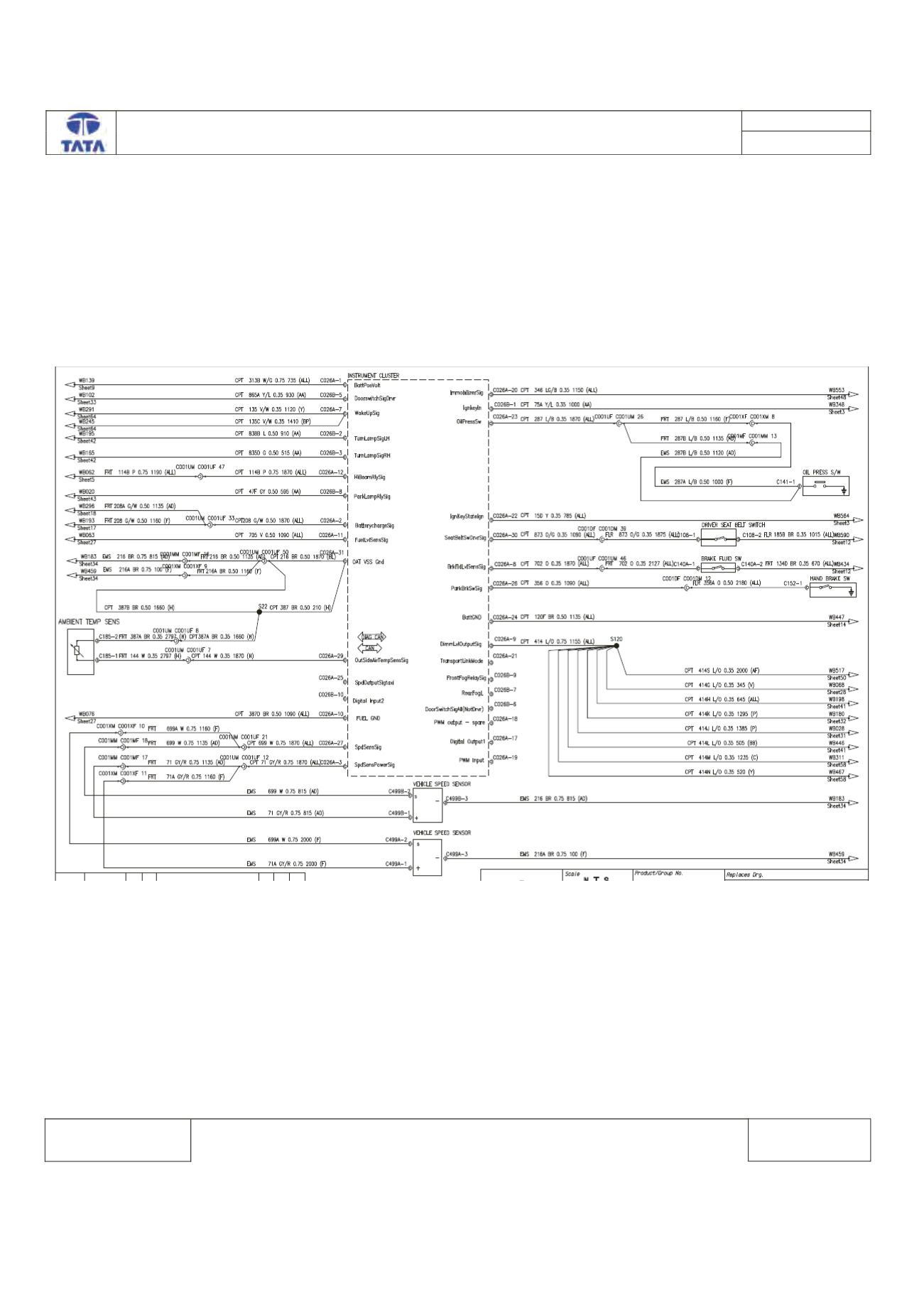

Circuit Schematic Diagram:-
